R18減速機傳動比計算：齒輪減速馬達

輸送帶參數：輪子直徑50，負載0.5噸，一分鐘走50米

50米÷（0.05輪子直徑×3.14）=318.5轉每分鐘

0.5噸換算成N=5000N

5000×0.025輪子半徑×0.06摩擦系數=7.5N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍7.5×2=15N.m

電機轉數1400÷輸出轉數318.5=4.39比

15N.m輸出扭矩÷4.39比=3.41N.m電機扭矩

3.41N.m電機扭矩?fù)Q算成功率0.55KW以上

對應的R18減速機選型參數：

型號：R18-B0.55KW

減速比：4.51

輸出轉數：306轉每分鐘

輸出扭矩：17N.m

安全系數：2.80

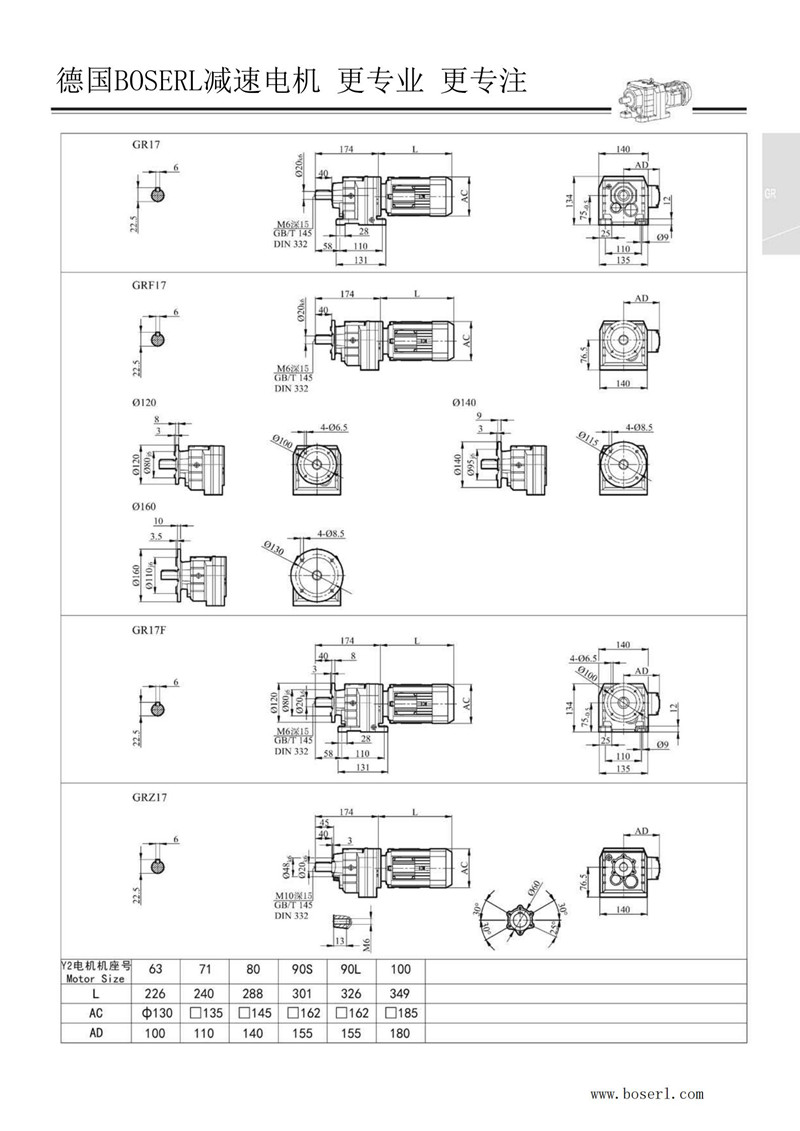

R18減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機

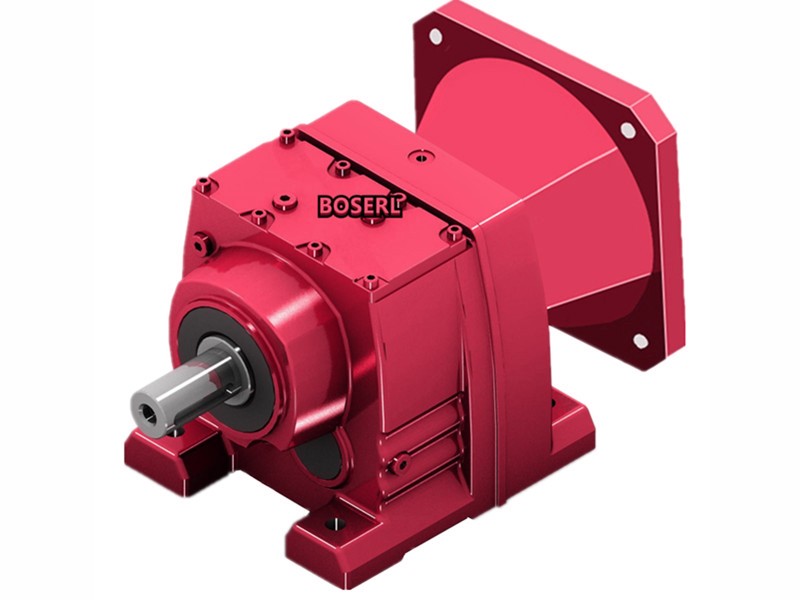

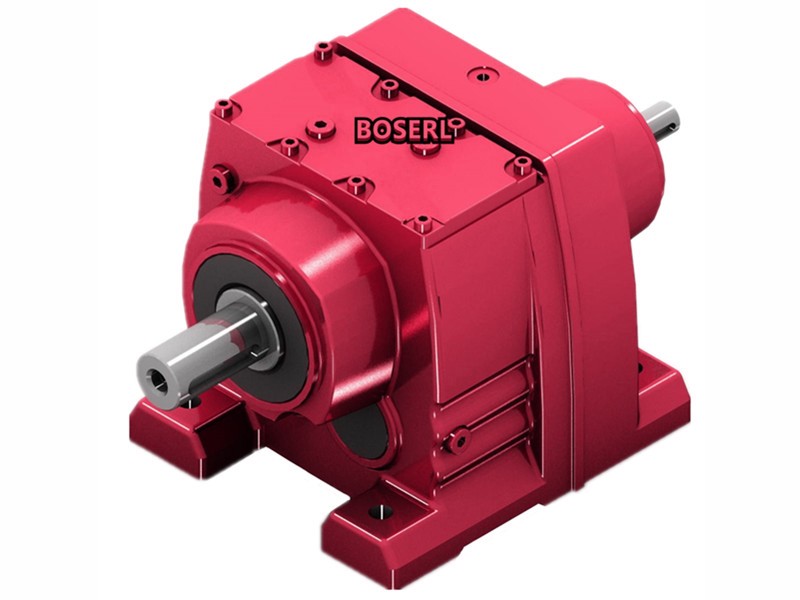

R18臥式硬齒面斜齒輪減速機型號：

R17FDM63L4,R17FDM63M4,R17FDM63MS4,R17FDM63S4,R17FDM71D4,R17FDM71M4,R17FDM71MS4,R17FDM71S4,R17FDM80K4,R17FDM80M4,R17FDM80MK4,R17FDM80N4,R17FDM80S4,R17FDR63L4,R17FDR63M4,R17FDR63MS4,R17FDR63S4,R17FDR71D4,R17FDR71M4,R17FDR71MS4,R17FDR71S4,R17FDR80K4,R17FDR80M4,R17FDR80MK4,R17FDR80N4,R17FDR80S4,R17FDRE63L4,R17FDRE63M4,R17FDRE63MS4,R17FDRE63S4,R17FDRE71D4,R17FDRE71M4,R17FDRE71MS4,R17FDRE71S4,R17FDRE80K4,R17FDRE80M4,R17FDRE80MK4,R17FDRE80N4,R17FDRE80S4,R17FDRN63L4,R17FDRN63M4,R17FDRN63MS4,R17FDRN63S4,R17FDRN71D4,R17FDRN71M4,R17FDRN71MS4,R17FDRN71S4,R17FDRN80K4,R17FDRN80M4,R17FDRN80MK4,R17FDRN80N4,R17FDRN80S4,R17FDRS63L4,R17FDRS63M4,R17FDRS63MS4,R17FDRS63S4,R17FDRS71D4,R17FDRS71M4,R17FDRS71MS4,R17FDRS71S4,R17FDRS80K4,R17FDRS80M4,R17FDRS80MK4,R17FDRS80N4,R17FDRS80S4,R17FDT63L4,R17FDT63M4,R17FDT63MS4,R17FDT63S4,R17FDT71D4,R17FDT71M4,R17FDT71MS4,R17FDT71S4,R17FDT80K4,R17FDT80M4,R17FDT80MK4,R17FDT80N4,R17FDT80S4,R17FDV63L4,R17FDV63M4,R17FDV63MS4,R17FDV63S4,R17FDV71D4,R17FDV71M4,R17FDV71MS4,R17FDV71S4,R17FDV80K4,R17FDV80M4,R17FDV80MK4,R17FDV80N4,R17FDV80S4,R17FDVE63L4,R17FDVE63M4,R17FDVE63MS4,R17FDVE63S4,R17FDVE71D4,R17FDVE71M4,R17FDVE71MS4,R17FDVE71S4,R17FDVE80K4,R17FDVE80M4,R17FDVE80MK4,R17FDVE80N4,R17FDVE80S4,R17F-Y0.12KW,R17F-Y0.18KW,R17F-Y0.25KW,R17F-Y0.37KW,R17F-Y0.55KW,R17F-Y0.75KW,R17F-Y63M4,R17F-Y71M4,R17F-Y80M4,R17F-YEJ0.12KW,R17F-YEJ0.18KW,R17F-YEJ0.25KW,R17F-YEJ0.37KW,R17F-YEJ0.55KW,R17F-YEJ0.75KW,R17F-YEJ63M4,R17F-YEJ71M4,R17F-YEJ80M4,R17F-YVP0.12KW,R17F-YVP0.18KW,R17F-YVP0.25KW,R17F-YVP0.37KW,R17F-YVP0.55KW,R17F-YVP0.75KW,R17F-YVP63M4,R17F-YVP71M4,R17F-YVP80M4,R17F-YVPEJ0.12KW,R17F-YVPEJ0.18KW,R17F-YVPEJ0.25KW,R17F-YVPEJ0.37KW,R17F-YVPEJ0.55KW,R17F-YVPEJ0.75KW,R17F-YVPEJ63M4,R17F-YVPEJ71M4,R17F-YVPEJ80M4。

R17系列減速機參數大全：同軸斜齒輪減速電機

R17F減速機配0.12KW電機參數

R17F減速機配0.18KW電機參數

R17F減速機配0.25KW電機參數

R17F減速機配0.37KW電機參數

R17F減速機配0.55KW電機參數

R17F減速機配0.75KW電機參數

R18減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：R168減速機
