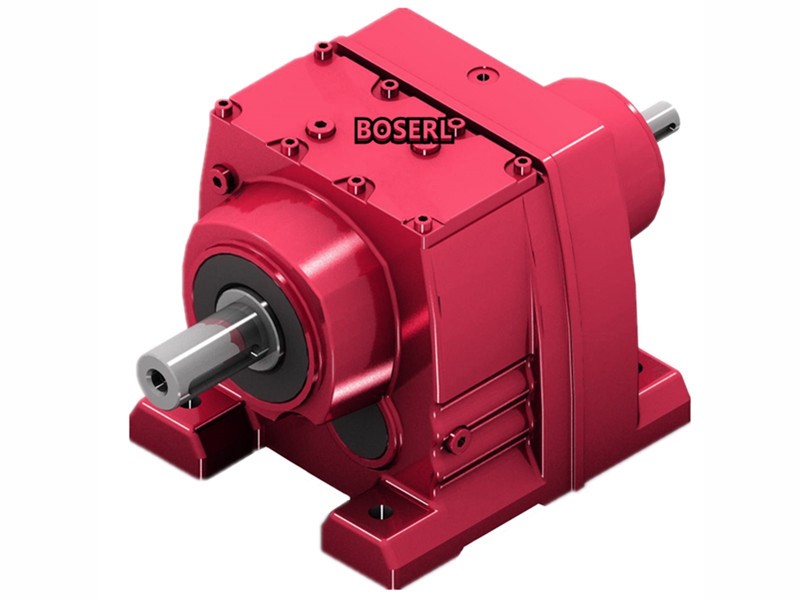

R68減速機傳動比計算：齒輪減速馬達

輸送帶參數：輪子直徑150，負載3噸，一分鐘走25米

25米÷（0.15輪子直徑×3.14）=53轉每分鐘

3噸換算成N=30000N

30000×0.075輪子半徑×0.06摩擦系數=135N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍135×2=270N.m

電機轉數1400÷輸出轉數53=26.41比

270N.m輸出扭矩÷26.41比=10.22N.m電機扭矩

10.22N.m電機扭矩?fù)Q算成功率1.63KW以上

對應的R68減速機選型參數：

型號：R68-B1.5KW

減速比：28.13

輸出轉數：51轉每分鐘

輸出扭矩：280N.m

安全系數：1.90

R68減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機

R68臥式硬齒面斜齒輪減速機型號：

R67FDM100L4,R67FDM100LC4,R67FDM100LS4,R67FDM100M4,R67FDM112M4,R67FDM132L4,R67FDM132M4,R67FDM132MC4,R67FDM132ML4,R67FDM132S4,R67FDM63L4,R67FDM63M4,R67FDM63MS4,R67FDM63S4,R67FDM71D4,R67FDM71M4,R67FDM71MS4,R67FDM71S4,R67FDM80K4,R67FDM80M4,R67FDM80MK4,R67FDM80N4,R67FDM80S4,R67FDM90L4,R67FDM90M4,R67FDM90S4,R67FDR100L4,R67FDR100LC4,R67FDR100LS4,R67FDR100M4,R67FDR112M4,R67FDR132L4,R67FDR132M4,R67FDR132MC4,R67FDR132ML4,R67FDR132S4,R67FDR63L4,R67FDR63M4,R67FDR63MS4,R67FDR63S4,R67FDR71D4,R67FDR71M4,R67FDR71MS4,R67FDR71S4,R67FDR80K4,R67FDR80M4,R67FDR80MK4,R67FDR80N4,R67FDR80S4,R67FDR90L4,R67FDR90M4,R67FDR90S4,R67FDRE100L4,R67FDRE100LC4,R67FDRE100LS4,R67FDRE100M4,R67FDRE112M4,R67FDRE132L4,R67FDRE132M4,R67FDRE132MC4,R67FDRE132ML4,R67FDRE132S4,R67FDRE63L4,R67FDRE63M4,R67FDRE63MS4,R67FDRE63S4,R67FDRE71D4,R67FDRE71M4,R67FDRE71MS4,R67FDRE71S4,R67FDRE80K4,R67FDRE80M4,R67FDRE80MK4,R67FDRE80N4,R67FDRE80S4,R67FDRE90L4,R67FDRE90M4,R67FDRE90S4,R67FDRN100L4,R67FDRN100LC4,R67FDRN100LS4,R67FDRN100M4,R67FDRN112M4,R67FDRN132L4,R67FDRN132M4,R67FDRN132MC4,R67FDRN132ML4,R67FDRN132S4,R67FDRN63L4,R67FDRN63M4,R67FDRN63MS4,R67FDRN63S4,R67FDRN71D4,R67FDRN71M4,R67FDRN71MS4,R67FDRN71S4,R67FDRN80K4,R67FDRN80M4,R67FDRN80MK4,R67FDRN80N4,R67FDRN80S4,R67FDRN90L4,R67FDRN90M4,R67FDRN90S4,R67FDRS100L4,R67FDRS100LC4,R67FDRS100LS4,R67FDRS100M4,R67FDRS112M4,R67FDRS132L4,R67FDRS132M4,R67FDRS132MC4,R67FDRS132ML4,R67FDRS132S4,R67FDRS63L4,R67FDRS63M4,R67FDRS63MS4,R67FDRS63S4,R67FDRS71D4,R67FDRS71M4,R67FDRS71MS4,R67FDRS71S4,R67FDRS80K4,R67FDRS80M4,R67FDRS80MK4,R67FDRS80N4,R67FDRS80S4,R67FDRS90L4,R67FDRS90M4,R67FDRS90S4,R67FDT100L4,R67FDT100LC4,R67FDT100LS4,R67FDT100M4,R67FDT112M4,R67FDT132L4,R67FDT132M4,R67FDT132MC4,R67FDT132ML4,R67FDT132S4,R67FDT63L4,R67FDT63M4,R67FDT63MS4,R67FDT63S4,R67FDT71D4,R67FDT71M4,R67FDT71MS4,R67FDT71S4,R67FDT80K4,R67FDT80M4,R67FDT80MK4,R67FDT80N4,R67FDT80S4,R67FDT90L4,R67FDT90M4,R67FDT90S4,R67FDV100L4,R67FDV100LC4,R67FDV100LS4,R67FDV100M4,R67FDV112M4,R67FDV132L4,R67FDV132M4,R67FDV132MC4,R67FDV132ML4,R67FDV132S4,R67FDV63L4,R67FDV63M4,R67FDV63MS4,R67FDV63S4,R67FDV71D4,R67FDV71M4,R67FDV71MS4,R67FDV71S4,R67FDV80K4,R67FDV80M4,R67FDV80MK4,R67FDV80N4,R67FDV80S4,R67FDV90L4,R67FDV90M4,R67FDV90S4,R67FDVE100L4,R67FDVE100LC4,R67FDVE100LS4,R67FDVE100M4,R67FDVE112M4,R67FDVE132L4,R67FDVE132M4,R67FDVE132MC4,R67FDVE132ML4,R67FDVE132S4,R67FDVE63L4,R67FDVE63M4,R67FDVE63MS4,R67FDVE63S4,R67FDVE71D4,R67FDVE71M4,R67FDVE71MS4,R67FDVE71S4,R67FDVE80K4,R67FDVE80M4,R67FDVE80MK4,R67FDVE80N4,R67FDVE80S4,R67FDVE90L4,R67FDVE90M4,R67FDVE90S4,R67F-Y0.12KW,R67F-Y0.18KW,R67F-Y0.25KW,R67F-Y0.37KW,R67F-Y0.55KW,R67F-Y0.75KW,R67F-Y1.1KW,R67F-Y1.5KW,R67F-Y100M4,R67F-Y112M4,R67F-Y132M4,R67F-Y2.2KW,R67F-Y3KW,R67F-Y4KW,R67F-Y5.5KW,R67F-Y63M4,R67F-Y7.5KW,R67F-Y71M4,R67F-Y80M4,R67F-Y90M4,R67F-YEJ0.12KW,R67F-YEJ0.18KW,R67F-YEJ0.25KW,R67F-YEJ0.37KW,R67F-YEJ0.55KW,R67F-YEJ0.75KW,R67F-YEJ1.1KW,R67F-YEJ1.5KW,R67F-YEJ100M4,R67F-YEJ112M4,R67F-YEJ132M4,R67F-YEJ2.2KW,R67F-YEJ3KW,R67F-YEJ4KW,R67F-YEJ5.5KW,R67F-YEJ63M4,R67F-YEJ7.5KW,R67F-YEJ71M4,R67F-YEJ80M4,R67F-YEJ90M4,R67F-YVP0.12KW,R67F-YVP0.18KW,R67F-YVP0.25KW,R67F-YVP0.37KW,R67F-YVP0.55KW,R67F-YVP0.75KW,R67F-YVP1.1KW,R67F-YVP1.5KW,R67F-YVP100M4,R67F-YVP112M4,R67F-YVP132M4,R67F-YVP2.2KW,R67F-YVP3KW,R67F-YVP4KW,R67F-YVP5.5KW,R67F-YVP63M4,R67F-YVP7.5KW,R67F-YVP71M4,R67F-YVP80M4,R67F-YVP90M4,R67F-YVPEJ0.12KW,R67F-YVPEJ0.18KW,R67F-YVPEJ0.25KW,R67F-YVPEJ0.37KW,R67F-YVPEJ0.55KW,R67F-YVPEJ0.75KW,R67F-YVPEJ1.1KW,R67F-YVPEJ1.5KW,R67F-YVPEJ100M4,R67F-YVPEJ112M4,R67F-YVPEJ132M4,R67F-YVPEJ2.2KW,R67F-YVPEJ3KW,R67F-YVPEJ4KW,R67F-YVPEJ5.5KW,R67F-YVPEJ63M4,R67F-YVPEJ7.5KW,R67F-YVPEJ71M4,R67F-YVPEJ80M4,R67F-YVPEJ90M4。

R67系列減速機參數大全：同軸斜齒輪減速電機

R67F減速機配0.12KW電機參數

R67F減速機配0.18KW電機參數

R67F減速機配0.25KW電機參數

R67F減速機配0.37KW電機參數

R67F減速機配0.55KW電機參數

R67F減速機配0.75KW電機參數

R67F減速機配1.1KW電機參數

R67F減速機配1.5KW電機參數

R67F減速機配2.2KW電機參數

R67F減速機配3KW電機參數

R67F減速機配4KW電機參數

R67F減速機配5.5KW電機參數

R67F減速機配7.5KW電機參數

R68減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
