KA128減速電機詳細信息

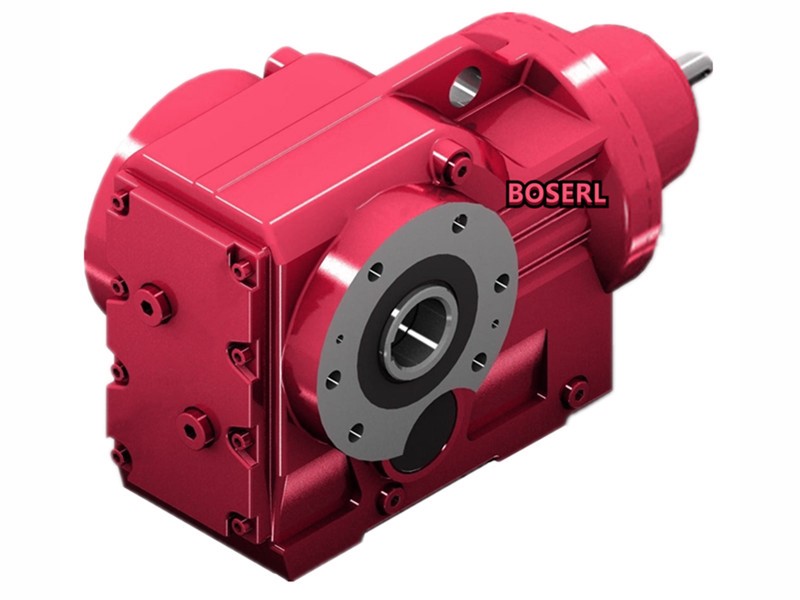

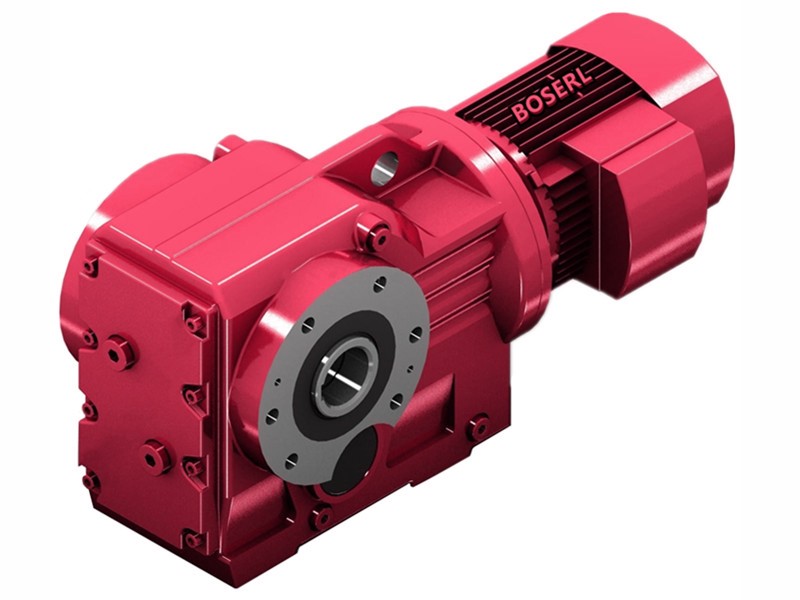

KA128減速電機
訂購熱線：13360667204
KA128減速電機選型計算：齒輪減速馬達
混泥土攪拌罐參數：攪拌罐負載2800公斤，攪動44圈/每分鐘，攪動齒輪直徑126
電機轉數1400÷44圈（輸出轉速）=減速比31.82
攪拌2800公斤混泥土=27440N
27440N×0.063攪動齒輪半徑=1728.72×3攪拌泥狀物料扭矩放大三倍=5186.16N.m
5186.16N.m÷31.82減速比=162.98N.m電機扭矩
162.98N.m電機扭矩?fù)Q算成功率25.87KW以上
對應的KA128減速機選型參數：
型號：KA128-BVP30KW
減速比：31.37
輸出轉數：47轉每分鐘
輸出扭矩：6090N.m
安全系數：2.1
KA128減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）空心軸減速機
KA128斜齒輪錐齒輪減速機型號：
KA128減速電機型號參數：直角減速機
KA128減速機配7.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K127Y7.5KW | 7.5KW | 9.9rpm | 7240N.m | 1.8 |
| K127Y7.5KW | 7.5KW | 11rpm | 6740N.m | 1.95 |
| K127Y7.5KW | 7.5KW | 12rpm | 6070N.m | 2.1 |
| K127Y7.5KW | 7.5KW | 13rpm | 3460N.m | 2.4 |
| K127Y7.5KW | 7.5KW | 16rpm | 4450N.m | 2.9 |
| K127Y7.5KW | 7.5KW | 18rpm | 4060N.m | 3.2 |
| K127Y7.5KW | 7.5KW | 20rpm | 3510N.m | 3.7 |
KA128減速機配11KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K127Y11KW | 11KW | 11rpm | 9790N.m | 1.35 |
| K127Y11KW | 11KW | 12rpm | 8810N.m | 1.5 |
| K127Y11KW | 11KW | 13rpm | 7920N.m | 1.65 |
| K127Y11KW | 11KW | 16rpm | 6460N.m | 2 |
| K127Y11KW | 11KW | 18rpm | 5890N.m | 2.2 |
| K127Y11KW | 11KW | 21rpm | 5100N.m | 2.6 |
KA128減速機配15KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K127Y15KW | 15KW | 11rpm | 13400N.m | 0.95 |
| K127Y15KW | 15KW | 12rpm | 12000N.m | 1.1 |
| K127Y15KW | 15KW | 13rpm | 10800N.m | 1.2 |
| K127Y15KW | 15KW | 16rpm | 8820N.m | 1.45 |
| K127Y15KW | 15KW | 18rpm | 8040N.m | 1.6 |
| K127Y15KW | 15KW | 21rpm | 6960N.m | 1.85 |
| K127Y15KW | 15KW | 23rpm | 6140N.m | 2.1 |
| K127Y15KW | 15KW | 27rpm | 5300N.m | 2.5 |
| K127Y15KW | 15KW | 31rpm | 4690N.m | 2.8 |
KA128減速機配18.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K127Y18.5KW | 18.5KW | 13rpm | 13300N.m | 1 |
| K127Y18.5KW | 18.5KW | 16rpm | 10800N.m | 1.2 |
| K127Y18.5KW | 18.5KW | 18rpm | 9910N.m | 1.3 |
| K127Y18.5KW | 18.5KW | 21rpm | 8580N.m | 1.5 |
| K127Y18.5KW | 18.5KW | 23rpm | 7570N.m | 1.7 |
| K127Y18.5KW | 18.5KW | 27rpm | 6540N.m | 2 |
| K127Y18.5KW | 18.5KW | 31rpm | 5780N.m | 2.2 |
| K127Y18.5KW | 18.5KW | 36rpm | 4860N.m | 2.7 |
| K127Y18.5KW | 18.5KW | 40rpm | 4380N.m | 3 |
| K127Y18.5KW | 18.5KW | 47rpm | 3790N.m | 3.4 |
| K127Y18.5KW | 18.5KW | 53rpm | 3340N.m | 3.9 |
KA128減速機配22KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K127Y22KW | 22KW | 16rpm | 12900N.m | 1 |
| K127Y22KW | 22KW | 18rpm | 11700N.m | 1.1 |
| K127Y22KW | 22KW | 21rpm | 10200N.m | 1.25 |
| K127Y22KW | 22KW | 23rpm | 9000N.m | 1.45 |
| K127Y22KW | 22KW | 27rpm | 7770N.m | 1.65 |
| K127Y22KW | 22KW | 31rpm | 6880N.m | 1.9 |
| K127Y22KW | 22KW | 36rpm | 5780N.m | 2.2 |
| K127Y22KW | 22KW | 40rpm | 5210N.m | 2.5 |
| K127Y22KW | 22KW | 47rpm | 4510N.m | 2.9 |
| K127Y22KW | 22KW | 53rpm | 3980N.m | 3.3 |
| K127Y22KW | 22KW | 61rpm | 3430N.m | 3.8 |
| K127Y22KW | 22KW | 69rpm | 3040N.m | 4.3 |
KA128減速機配30KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K127Y30KW | 30KW | 21rpm | 13800N.m | 0.95 |
| K127Y30KW | 30KW | 24rpm | 12200N.m | 1.05 |
| K127Y30KW | 30KW | 27rpm | 10500N.m | 1.25 |
| K127Y30KW | 30KW | 31rpm | 9290N.m | 1.4 |
| K127Y30KW | 30KW | 37rpm | 7810N.m | 1.65 |
| K127Y30KW | 30KW | 41rpm | 7040N.m | 1.85 |
| K127Y30KW | 30KW | 47rpm | 6090N.m | 2.1 |
| K127Y30KW | 30KW | 53rpm | 5380N.m | 2.4 |
| K127Y30KW | 30KW | 62rpm | 4640N.m | 2.8 |
KA128減速機配37KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K127Y37KW | 37KW | 23rpm | 15000N.m | 0.85 |
| K127Y37KW | 37KW | 27rpm | 12900N.m | 1 |
| K127Y37KW | 37KW | 31rpm | 11400N.m | 1.15 |
| K127Y37KW | 37KW | 37rpm | 9650N.m | 1.35 |
| K127Y37KW | 37KW | 41rpm | 8710N.m | 1.5 |
| K127Y37KW | 37KW | 47rpm | 7530N.m | 1.7 |
| K127Y37KW | 37KW | 53rpm | 6650N.m | 1.95 |
| K127Y37KW | 37KW | 62rpm | 5740N.m | 2.3 |
| K127Y37KW | 37KW | 70rpm | 5080N.m | 2.6 |
| K127Y37KW | 37KW | 83rpm | 4270N.m | 3 |
| K127Y37KW | 37KW | 102rpm | 3440N.m | 3.5 |
| K127Y37KW | 37KW | 115rpm | 3070N.m | 2.8 |
| K127Y37KW | 37KW | 137rpm | 2580N.m | 3.1 |
| K127Y37KW | 37KW | 169rpm | 2080N.m | 3.5 |
KA128減速機配45KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K127Y45KW | 45KW | 31rpm | 13800N.m | 0.95 |
| K127Y45KW | 45KW | 37rpm | 11600N.m | 1.1 |
| K127Y45KW | 45KW | 41rpm | 10500N.m | 1.25 |
| K127Y45KW | 45KW | 47rpm | 9100N.m | 1.45 |
| K127Y45KW | 45KW | 53rpm | 8030N.m | 1.6 |
| K127Y45KW | 45KW | 62rpm | 6930N.m | 1.85 |
| K127Y45KW | 45KW | 70rpm | 6130N.m | 2.1 |
| K127Y45KW | 45KW | 83rpm | 5150N.m | 2.5 |
| K127Y45KW | 45KW | 103rpm | 4160N.m | 2.9 |
| K127Y45KW | 45KW | 116rpm | 3710N.m | 2.3 |
| K127Y45KW | 45KW | 138rpm | 3110N.m | 2.6 |
| K127Y45KW | 45KW | 171rpm | 2510N.m | 2.9 |
KA128減速機配55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K127Y55KW | 55KW | 37rpm | 14300N.m | 0.9 |
| K127Y55KW | 55KW | 47rpm | 11100N.m | 1.15 |
| K127Y55KW | 55KW | 53rpm | 9580N.m | 1.3 |
| K127Y55KW | 55KW | 62rpm | 8510N.m | 1.55 |
| K127Y55KW | 55KW | 70rpm | 7520N.m | 1.75 |
| K127Y55KW | 55KW | 83rpm | 6320N.m | 2 |
| K127Y55KW | 55KW | 103rpm | 5100N.m | 2.4 |
| K127Y55KW | 55KW | 115rpm | 4550N.m | 1.85 |
| K127Y55KW | 55KW | 137rpm | 3820N.m | 2.1 |
| K127Y55KW | 55KW | 170rpm | 3080N.m | 2.3 |
KA128減速機配75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K127Y75KW | 75KW | 47rpm | 15100N.m | 0.85 |
| K127Y75KW | 75KW | 53rpm | 13300N.m | 0.95 |
| K127Y75KW | 75KW | 62rpm | 11500N.m | 1.1 |
| K127Y75KW | 75KW | 70rpm | 10200N.m | 1.25 |
| K127Y75KW | 75KW | 83rpm | 8590N.m | 1.5 |
| K127Y75KW | 75KW | 103rpm | 6940N.m | 1.75 |
| K127Y75KW | 75KW | 116rpm | 6180N.m | 1.4 |
| K127Y75KW | 75KW | 138rpm | 5190N.m | 1.55 |
| K127Y75KW | 75KW | 171rpm | 4190N.m | 1.7 |
KA128減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K128減速機
關鍵詞:通孔減速機型一體式_空心軸減速機配電機_直角中空減速機_中孔輸出減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器
KA系列齒輪減速馬達型號：KA38減速機,KA48減速機,KA58減速機,KA68減速機,KA78減速機,KA88減速機,KA98減速機,KA108減速機,KA128減速機,KA158減速機,KA168減速機,KA188減速機
KA系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KA128減速電機 KA127斜齒輪錐齒輪減速機 KA127減速機功率 KA127減速機基座尺寸 KA127減速機模型 KA127減速機型號參數
