R78R38減速機詳細信息
R78R38減速機
R78R38減速器電機功率：R78R38Y0.12KW減速器,R78R38Y0.18KW減速器,R78R38Y0.25KW減速器,R78R38Y0.37KW減速器,R78R38Y0.55KW減速器（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
R77FRF37減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R77FRF37-Y0.12KW | 1303 | 0.12KW | 1.10r/min | 930N.m | 50kg | 8660N | 0.85 |
| R77FRF37-Y0.12KW | 1124 | 0.12KW | 1.20r/min | 795N.m | 50kg | 10100N | 1.05 |
| R77FRF37-Y0.12KW | 1047 | 0.12KW | 1.30r/min | 740N.m | 50kg | 10600N | 1.10 |
| R77FRF37-Y0.12KW | 915 | 0.12KW | 1.50r/min | 635N.m | 50kg | 11300N | 1.30 |
| R77FRF37-Y0.12KW | 1218 | 0.12KW | 1.10r/min | 820N.m | 50kg | 9910N | 1.00 |
| R77FRF37-Y0.12KW | 1084 | 0.12KW | 1.30r/min | 740N.m | 50kg | 10600N | 1.10 |
| R77FRF37-Y0.12KW | 940 | 0.12KW | 1.50r/min | 660N.m | 50kg | 11200N | 1.25 |
| R77FRF37-Y0.12KW | 821 | 0.12KW | 1.70r/min | 520N.m | 50kg | 12000N | 1.55 |
| R77FRF37-Y0.12KW | 731 | 0.12KW | 1.90r/min | 475N.m | 50kg | 12200N | 1.70 |
| R77FRF37-Y0.12KW | 646 | 0.12KW | 2.10r/min | 455N.m | 50kg | 12300N | 1.80 |
| R77FRF37-Y0.12KW | 520 | 0.12KW | 2.60r/min | 375N.m | 50kg | 12600N | 2.20 |
| R77FRF37-Y0.12KW | 451 | 0.12KW | 3.10r/min | 320N.m | 50kg | 12700N | 2.50 |
| R77FRF37-Y0.12KW | 422 | 0.12KW | 3.30r/min | 300N.m | 50kg | 12800N | 2.70 |
| R77FRF37-Y0.12KW | 365 | 0.12KW | 3.80r/min | 255N.m | 50kg | 12900N | 3.20 |
R77FRF37減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R77FRF37-Y0.18KW | 858 | 0.18KW | 1.50r/min | 970N.m | 50.5kg | 5830N | 0.85 |
| R77FRF37-Y0.18KW | 757 | 0.18KW | 1.70r/min | 850N.m | 50.5kg | 9590N | 0.95 |
| R77FRF37-Y0.18KW | 671 | 0.18KW | 2.00r/min | 750N.m | 50.5kg | 10500N | 1.10 |
| R77FRF37-Y0.18KW | 571 | 0.18KW | 2.30r/min | 630N.m | 50.5kg | 11400N | 1.30 |
| R77FRF37-Y0.18KW | 821 | 0.18KW | 1.60r/min | 880N.m | 50.5kg | 9230N | 0.90 |
| R77FRF37-Y0.18KW | 731 | 0.18KW | 1.80r/min | 800N.m | 50.5kg | 10100N | 1.00 |
| R77FRF37-Y0.18KW | 646 | 0.18KW | 2.00r/min | 745N.m | 50.5kg | 10500N | 1.10 |
| R77FRF37-Y0.18KW | 560 | 0.18KW | 2.40r/min | 645N.m | 50.5kg | 11300N | 1.25 |
| R77FRF37-Y0.18KW | 488 | 0.18KW | 2.70r/min | 550N.m | 50.5kg | 11800N | 1.50 |
| R77FRF37-Y0.18KW | 436 | 0.18KW | 3.00r/min | 485N.m | 50.5kg | 12100N | 1.70 |
| R77FRF37-Y0.18KW | 373 | 0.18KW | 3.50r/min | 420N.m | 50.5kg | 12400N | 1.95 |
| R77FRF37-Y0.18KW | 327 | 0.18KW | 4.00r/min | 365N.m | 50.5kg | 12600N | 2.20 |
| R77FRF37-Y0.18KW | 289 | 0.18KW | 4.60r/min | 325N.m | 50.5kg | 12700N | 2.50 |
R77FRF37減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R77FRF37-Y0.25KW | 571 | 0.25KW | 2.30r/min | 910N.m | 54.5kg | 8910N | 0.90 |
| R77FRF37-Y0.25KW | 560 | 0.25KW | 2.30r/min | 920N.m | 54.5kg | 8780N | 0.90 |
| R77FRF37-Y0.25KW | 488 | 0.25KW | 2.70r/min | 795N.m | 54.5kg | 10100N | 1.05 |
| R77FRF37-Y0.25KW | 436 | 0.25KW | 3.00r/min | 705N.m | 54.5kg | 10900N | 1.15 |
| R77FRF37-Y0.25KW | 373 | 0.25KW | 3.50r/min | 605N.m | 54.5kg | 11500N | 1.35 |
| R77FRF37-Y0.25KW | 327 | 0.25KW | 4.00r/min | 530N.m | 54.5kg | 11900N | 1.55 |
| R77FRF37-Y0.25KW | 289 | 0.25KW | 4.50r/min | 470N.m | 54.5kg | 12200N | 1.75 |
| R77FRF37-Y0.25KW | 260 | 0.25KW | 5.00r/min | 420N.m | 54.5kg | 12400N | 1.95 |
| R77FRF37-Y0.25KW | 224 | 0.25KW | 5.80r/min | 355N.m | 54.5kg | 12600N | 2.30 |
R77FRF37減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R77FRF37-Y0.37KW | 373 | 0.37KW | 3.70r/min | 860N.m | 55kg | 9520N | 0.95 |
| R77FRF37-Y0.37KW | 327 | 0.37KW | 4.20r/min | 755N.m | 55kg | 10500N | 1.10 |
| R77FRF37-Y0.37KW | 289 | 0.37KW | 4.80r/min | 670N.m | 55kg | 11100N | 1.20 |
| R77FRF37-Y0.37KW | 260 | 0.37KW | 5.30r/min | 600N.m | 55kg | 11600N | 1.35 |
| R77FRF37-Y0.37KW | 224 | 0.37KW | 6.20r/min | 505N.m | 55kg | 12000N | 1.60 |
| R77FRF37-Y0.37KW | 197 | 0.37KW | 7.00r/min | 445N.m | 55kg | 12300N | 1.85 |
| R77FRF37-Y0.37KW | 169 | 0.37KW | 8.20r/min | 385N.m | 55kg | 12500N | 2.10 |
| R77FRF37-Y0.37KW | 149 | 0.37KW | 9.30r/min | 340N.m | 55kg | 12700N | 2.40 |
R77FRF37減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R77FRF37-Y0.55KW | 276 | 0.55KW | 5.00r/min | 970N.m | 59.5kg | 6200N | 0.85 |
| R77FRF37-Y0.55KW | 236 | 0.55KW | 5.80r/min | 820N.m | 59.5kg | 9850N | 1.00 |
| R77FRF37-Y0.55KW | 221 | 0.55KW | 6.20r/min | 770N.m | 59.5kg | 10300N | 1.05 |
| R77FRF37-Y0.55KW | 186 | 0.55KW | 7.40r/min | 645N.m | 59.5kg | 11300N | 1.25 |
R78R38減速電機減速比：1:149齒輪減速馬達,1:169減速電機,1:186減速電機,1:197減速電機,1:221減速電機,1:224減速電機,1:236減速電機,1:260減速電機,1:276減速電機,1:289減速電機,1:327減速電機,1:365減速電機,1:373減速電機,1:422減速電機,1:436減速電機,1:451減速電機,1:488減速電機,1:520減速電機,1:560減速電機,1:571減速電機,1:646減速電機,1:671減速電機,1:731減速電機,1:757減速電機,1:821減速電機,1:858減速電機,1:915減速電機,1:940減速電機,1:1047減速電機,1:1084減速電機,1:1124減速電機,1:1218減速電機,1:1303減速電機。
R78R38減速機電機安裝尺寸：輸出軸Φ40+鍵3（可定做），高228*寬232*長457（帶輸出軸）
R78R38減速箱輸出轉數：1.1rpm/min減速箱,1.2rpm/min減速箱,1.3rpm/min減速箱,1.5rpm/min減速箱,1.6rpm/min臥式減速機,1.7rpm/min減速箱,1.8rpm/min減速箱,1.9rpm/min減速箱,2rpm/min減速箱,2.1rpm/min減速箱,2.3rpm/min減速箱,2.4rpm/min減速箱,2.6rpm/min減速箱,2.7rpm/min減速箱,3rpm/min減速箱,3.1rpm/min減速箱,3.3rpm/min減速箱,3.5rpm/min減速箱,3.7rpm/min減速箱,3.8rpm/min減速箱,4rpm/min減速箱,4.2rpm/min減速箱,4.5rpm/min減速箱,4.6rpm/min減速箱,4.8rpm/min減速箱,5rpm/min減速箱,5.3rpm/min減速箱,5.8rpm/min減速箱,6.2rpm/min減速箱,7rpm/min減速箱,7.4rpm/min減速箱,8.2rpm/min減速箱,9.3rpm/min減速箱。
R78R38減速馬達電機輸出扭矩：255Nm減速馬達,300Nm減速馬達,320Nm減速馬達,325Nm減速馬達,340Nm減速馬達,355Nm減速馬達,365Nm減速馬達,375Nm減速馬達,385Nm減速馬達,420Nm減速馬達,445Nm減速馬達,455Nm減速馬達,470Nm減速馬達,475Nm減速馬達,485Nm減速馬達,505Nm減速馬達,520Nm減速馬達,530Nm減速馬達,550Nm減速馬達,600Nm減速馬達,605Nm減速馬達,630Nm減速馬達,635Nm減速馬達,645Nm減速馬達,660Nm減速馬達,670Nm減速馬達,705Nm減速馬達,740Nm減速馬達,745Nm減速馬達,750Nm減速馬達,755Nm減速馬達,770Nm減速馬達,795Nm減速馬達,800Nm減速馬達,820Nm減速馬達,850Nm減速馬達,860Nm減速馬達,880Nm減速馬達,910Nm減速馬達,920Nm減速馬達,930Nm減速馬達,970Nm減速馬達。

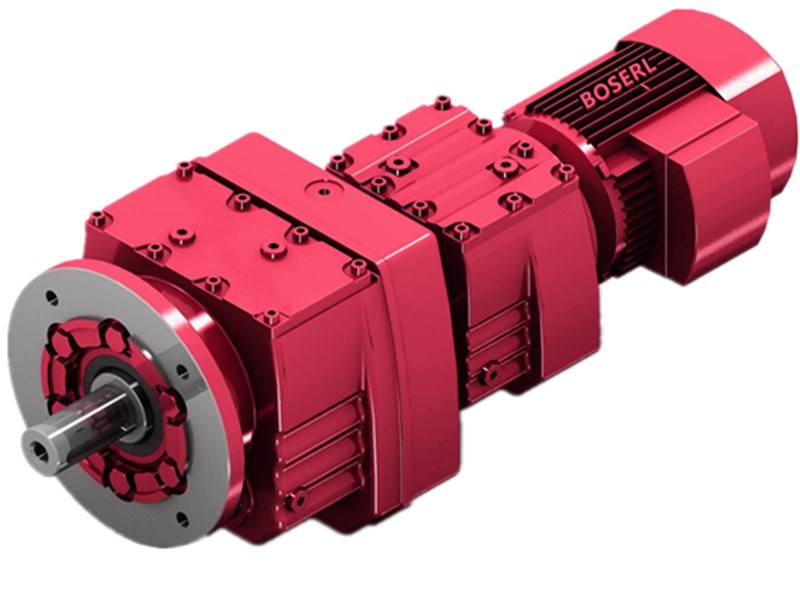

R78R38減速機電機各種輸出實物圖：
R78R38減速機型號：
R77FR37DM63L4,R77FR37DM63M4,R77FR37DM63MS4,R77FR37DM63S4,R77FR37DM71D4,R77FR37DM71M4,R77FR37DM71MS4,R77FR37DM71S4,R77FR37DM80K4,R77FR37DM80M4,R77FR37DM80MK4,R77FR37DM80N4,R77FR37DM80S4,R77FR37DR63L4,R77FR37DR63M4,R77FR37DR63MS4,R77FR37DR63S4,R77FR37DR71D4,R77FR37DR71M4,R77FR37DR71MS4,R77FR37DR71S4,R77FR37DR80K4,R77FR37DR80M4,R77FR37DR80MK4,R77FR37DR80N4,R77FR37DR80S4,R77FR37DRE63L4,R77FR37DRE63M4,R77FR37DRE63MS4,R77FR37DRE63S4,R77FR37DRE71D4,R77FR37DRE71M4,R77FR37DRE71MS4,R77FR37DRE71S4,R77FR37DRE80K4,R77FR37DRE80M4,R77FR37DRE80MK4,R77FR37DRE80N4,R77FR37DRE80S4,R77FR37DRN63L4,R77FR37DRN63M4,R77FR37DRN63MS4,R77FR37DRN63S4,R77FR37DRN71D4,R77FR37DRN71M4,R77FR37DRN71MS4,R77FR37DRN71S4,R77FR37DRN80K4,R77FR37DRN80M4,R77FR37DRN80MK4,R77FR37DRN80N4,R77FR37DRN80S4,R77FR37DRS63L4,R77FR37DRS63M4,R77FR37DRS63MS4,R77FR37DRS63S4,R77FR37DRS71D4,R77FR37DRS71M4,R77FR37DRS71MS4,R77FR37DRS71S4,R77FR37DRS80K4,R77FR37DRS80M4,R77FR37DRS80MK4,R77FR37DRS80N4,R77FR37DRS80S4,R77FR37DT63L4,R77FR37DT63M4,R77FR37DT63MS4,R77FR37DT63S4,R77FR37DT71D4,R77FR37DT71M4,R77FR37DT71MS4,R77FR37DT71S4,R77FR37DT80K4,R77FR37DT80M4,R77FR37DT80MK4,R77FR37DT80N4,R77FR37DT80S4,R77FR37DV63L4,R77FR37DV63M4,R77FR37DV63MS4,R77FR37DV63S4,R77FR37DV71D4,R77FR37DV71M4,R77FR37DV71MS4,R77FR37DV71S4,R77FR37DV80K4,R77FR37DV80M4,R77FR37DV80MK4,R77FR37DV80N4,R77FR37DV80S4,R77FR37DVE63L4,R77FR37DVE63M4,R77FR37DVE63MS4,R77FR37DVE63S4,R77FR37DVE71D4,R77FR37DVE71M4,R77FR37DVE71MS4,R77FR37DVE71S4,R77FR37DVE80K4,R77FR37DVE80M4,R77FR37DVE80MK4,R77FR37DVE80N4,R77FR37DVE80S4,R77FRF37-Y0.12KW,R77FRF37-Y0.18KW,R77FRF37-Y0.25KW,R77FRF37-Y0.37KW,R77FRF37-Y0.55KW,R77FRF37-YEJ0.12KW,R77FRF37-YEJ0.18KW,R77FRF37-YEJ0.25KW,R77FRF37-YEJ0.37KW,R77FRF37-YEJ0.55KW,R77FRF37-YVP0.12KW,R77FRF37-YVP0.18KW,R77FRF37-YVP0.25KW,R77FRF37-YVP0.37KW,R77FRF37-YVP0.55KW,R77FRF37-YVPEJ0.12KW,R77FRF37-YVPEJ0.18KW,R77FRF37-YVPEJ0.25KW,R77FRF37-YVPEJ0.37KW,R77FRF37-YVPEJ0.55KW。
R78R38減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.658895.com/product/list-rxiliejiansuji-cn.html
推薦型號：R78減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: R77FRF37-Y0.12KW R77FRF37-Y0.18KW R77FRF37-Y0.25KW R77FRF37-Y0.37KW R77FRF37-Y0.55KW
